All of our galvanized steel coils are made of Cold Rolled Steel. Cr steel coil products with good finishing and easily formed advantage can be widely used in Automobiles, Refrigerators, Washing machines, Industrial equipments, and all kinds of building materials.PPGI for Corrugated Roofing
PPGI For Corrugated Roofing
| Standard: | JIS G3312 | Top Coating: | 10-15um |
Back Coating: | 5-7um | Zinc: | 40g/m2 |
Color: | Ral Color/as Requirment | Coil Weight: | 3-12MT |
Coil ID: | 508MM/610MM | Gloss: | 60-80 Degree |
Top Paint: | Polyester | Free Sample: | OK |
All of our galvanized steel coils are made of Cold Rolled Steel. Cr steel coil products with good finishing and easily formed advantage can be widely used in Automobiles, Refrigerators, Washing machines, Industrial equipments, and all kinds of building materials.
PPGI for Corrugated Roofing
Our Compnay Can Manufacture Three Types Of Galvanized Steel Coils:
• Hot dipped Galvanized steel coil (SGCC, SGCD, SGCE)
• Electrogalvanized steel coil (SECC, SECD, SECE)
• Hot dipped Galvalume Steel Coil (GL)
PPGI for Corrugated Roofing

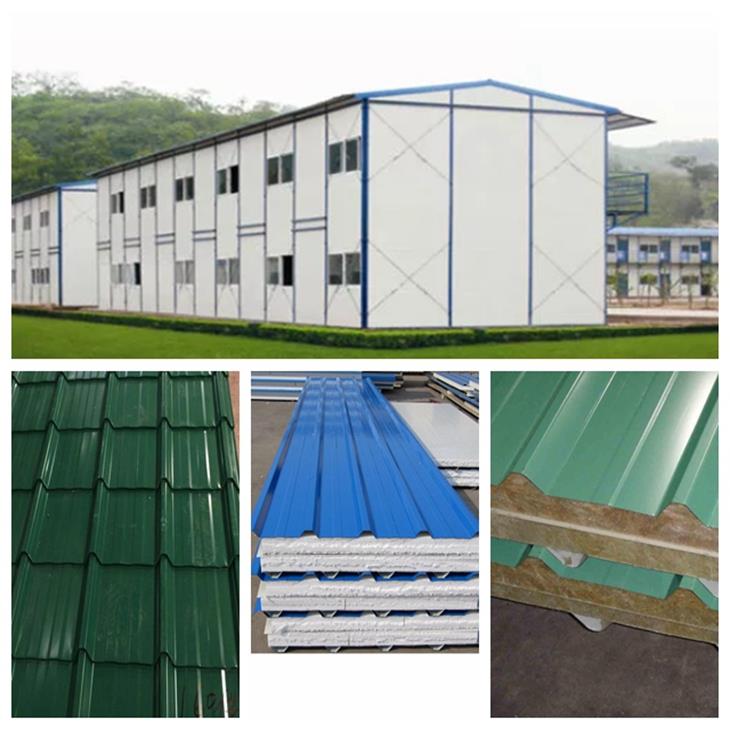

Application for PPGI for Corrugated Roofing: Automotive, machinery, appliance, printing, construction, building materials,bicycles and other industries, and production of organic coated steel is also the best selection.
1. We are pleased to offer better prices and product recommendations. Including inventory and application.
2. We are pleased at any time to provide the latest market price information.
3. Welcome to visit our factory. We guarantee you a pleasant time in China.
Type-01: Hot Dipped Galvanized Steel Coil
Substrate | Hot Dipped Galvanized Steel Coil |
Steel Grade | DX51D+Z~DX56D+Z, DC51D, Q195, Q235, Q235A, ST02Z, CS-B, etc |
Standard | JIS G3302-2007, GB/T2518-2008, ST02Z, DIN EN 10327, ASTM A653 |
Thickness | 0.14mm~1.0mm |
Width | 600mm~1250mm |
Zinc Coating | Z40~Z60 / Z80~Z100 / Z120~Z150 / Z275 |
Spangle | Regular spangle, minimum spangle |
Edge | Mill edge, cut edge |
Surface Treatment | Chromated, Oiled, Anti-finger print (N) |
Type-02: Cold Rolled Steel coil
Substrate | Cold Rolled Steel Coil |
Steel Grade | DC01+ZE, SECCN5, CR4, ZStE180BH+ZE, etc |
Standard | JIS G3302-2007, GB/T2518-2008, DIN EN 10327, ASTM A653 |
Thickness | 0.14mm~1.0mm |
Width | 600mm~1250mm |
Zinc Coating | E8, E16, E24, E32 |
Edge | Mill edge,cut edge |
Surface Treatment | Oiled, Phosphate (P), Anti-finger print (N) |
Type-03: Hot Dipped Galvalume Steel Coil
Substrate | Hot Dipped Galvalume Steel Coil |
Thickness | 0.14mm~2.0mm |
Width | 600mm~1250mm |
Spangle | Regular, Zero |
Treatment | Skin-passed, Chromated, AFP, Oiled |
Quality | CQ, DQ, HSLA |
Processes Of Cold Rolled Coil
Cold rolled production lineis runing in the form of 4 convertible roller in single framework, The material: Lower Carbon steel (CQ, DQ, DDQ), Lower Carbon high tensile steel (Q195, Q235, Q345), SHLA steel, deep drawing steel and if steel. Cover thickness: 0.23~1.50mm, width: 600~1250mm.
PPGI for Corrugated Roofing
4 Convertible Roller Machine
| Name | Thicnkess (mm) | Width (mm) | Coils ID (mm) | Side Condition | Surface Condition |
Cold Rolled Coils (CRC) | 0.14~1.0 | 600~1250 | 508/610 | rolling side | bright |
Processes Of Hot Dipped Galvanized Steel Coil

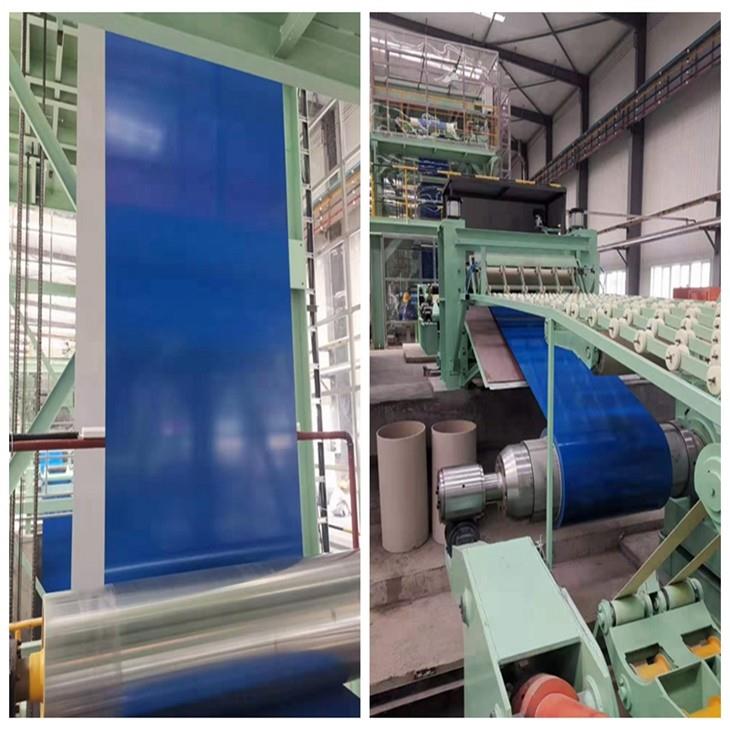

Hot Dipped Galvanized Steelis widely used in auto, household electrical appliance, IT, adnvaced building materials industries, etc. The process of producing hot dipped galvanized steel is: Cold Rolled Full Hard – Payoff Reels – Degreasing – Annealing – Zinc Coating – Tension Leveling – Straightedge Forming – Chromeate or Oil.
| Characteristics Of The Continuous Galvanizing Line |
Adopt roll-painting-chromated technology, ensure the Cr Free and envirinmentally-friendly process. |
High-level automatic control system ensures the efficiency and product quality. |
Product is able to be well shaped after tension leveling and straight forming. |
GI production line equipped with chromated, oiled and anti-finger print facilities can reach customers’ requirements. |
Zinc coating control system and technology imported from France guarantees the uniformity of zinc coating. |
The USS method applied in galvanizing thchnology ensures the high quality of adhesion and surface treatment. |
