PPGI Color Coated Coil Price

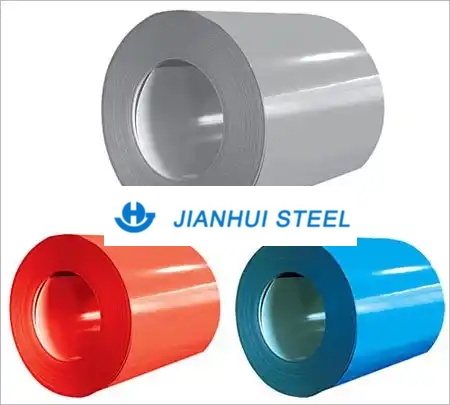

Product Name: PPGI, Prepainted Galvanized Steel Coil
Technical Standard: ASTM DIN GB JIS3312
Grade: SGCC SGCD or customer's requirement
Thickness: 0.13-2.0mm
Width 600-1500mm
Zinc Coating: 40-275 g/m2
Top Side: Primer paint+polyester paint coating
Back side: Primer epoxy
Coil Weight: 3-8 tons per coil

PPGI Color Coated Coil Price

What ARE PPGI color coated Coil price 4 major influencing factors ?


1. Thickness of steel coil substrate:


The thinner the thickness of the colour-coated steel coil, the higher the price. For example, the price of 0.13-0.16mm is relatively high.0.3-0.45mm price change is small.0.45-0.7 price is basically the same
Reason: the thinner the colour-coated steel coil. The more meters per tonne of steel coil, the larger the area, requiring more paint and longer processing time



2. Zinc layer thickness


1)Prices depend on the different thicknesses of the zinc layer.
For example, the price difference between a 20 g zinc layer and a 50 g zinc layer is significant. If the customer does not require a zinc coating, it is advisable to choose a coil with a zinc coating of approx. 30 grams for a better price/performance ratio.
2)The price of colour coating is also influenced by the aluminium content:

the price difference between 25% and 55% aluminium is significant. If the customer is using a normal environment, he can choose a colour coating with an aluminum content of around 25%.
If used in humid, outdoor and year-round tropical climates, it is recommended to choose a color coating with a higher aluminum and zinc content.3)Influence of special product cladding requirements:
Individual products that require laminating in order to prevent mess or have a special function will incur the cost of laminating.

3. 0.3mm- 0.4mm PPGI Color Coated Steel Coils Coating

Color-coated steel coils are available in two types: single-sided and double-sided color-coated.
Generally, the thickness of the single-sided color-coated top coat is 10-30um, and the thickness of the back coat is 5-10um.
The thickness of the double-sided colour-coated top coat is 11-30um, and the thickness of the back coat is also 11-30um.
The price of single-side color coating is lower than double-side color coating.
You need to choose the right color coating according to the application and environment.

4. 0.3mm- 0.4mm PPGI Color Coated Steel Coils Paint

The type and brand of paint also have an impact on the price of color coils.

Coatings are mainly divided into: PE polyester paint, SMP calcium silicate paint/HDP high weathering paint and PVDF fluorocarbon paint (Today's Knowledge - Colour Coated Sheet Paint Film Know How Much)
PE paint is the most used, and the price advantage is relatively large.
The service life of PVDF paint/HDP paint and SMP paint is longer than PE paint, but the price is higher.
The better paint brands are Lippon, Akzo
You need to choose the type and brand of paint according to the place and environment where the colour coating will be used.

5. 0.3mm- 0.4mm PPGI Color Coated Steel Coils wrap

product-350-350
PPGI Steel Packing



Colour coated steel coils are packed in simple packaging, standard export packaging and special packaging.

PPGI Steel Simple packing: Suitable for short-distance transport, the outer layer is waterproof kraft paper protection, simple protection performance, and low price.

PPGI Steel  Standard export packaging: the outer surface is waterproof kraft paper and galvanized iron packaging, and the outside of the steel coil is protected by galvanized iron, for long-distance transport and containers, using steel wire reinforcement. It can better protect the surface of colour-coated steel coil and waterproof effect. This kind of packaging is widely used

PPGI Steel Special Packaging:
Including vertical packing or customer's requirement packing. This packing method can calculate the price according to the packing cost. Vertical packaging is the roll center upwards, the bottom country set on a wooden pallet. This type of packaging provides maximum protection for the coil from external forces, but the cost of packaging and labor is high.


0.3mm- 0.4mm PPGI Color Coated Steel Coils Specification :



Product Name PPGI, Prepainted Galvanized Steel Coil
Technical Standard ASTM DIN GB JIS3312
Grade SGCC SGCD or customer's requirement
Type Commercial Quality/DQ
Brand Name  Li Cheung Steel
Width 600-1500mm
Zinc Coating 40-275 g/m2
Color all RAL Colors, or According to Customers Require/Sample
Top Side Primer paint+polyester paint coating
Back side Primer epoxy
Coil Weight 3-8 tons per coil
Package Standard export package or customized
Hardness >=F
T Bend >=3T
Reverse Impact >=9J
Salt Spray Resistance >=500 hours
