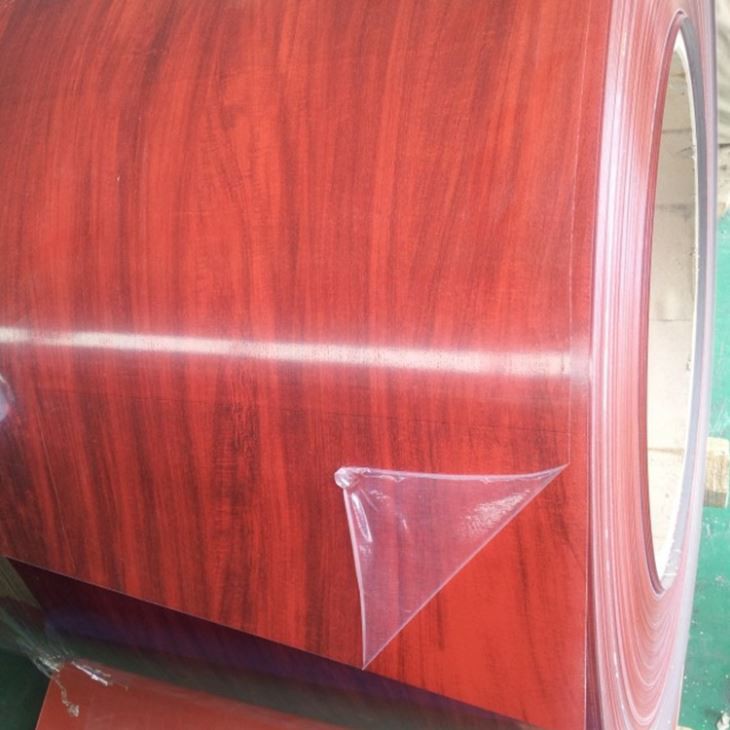

PPGI with Film

PPGI With Film

Thickness: 0.18 to 1.2mm

Size width: Usual: 1,000 to 1,200mm

Zinc coat: 60g to 100g

Quick Information

Place of Origin: China

Surface Treatment: Coated

Technique: Cold Rolled

Thickness: 0.14-1.2

Type: Steel Coil

800 : 1250

Description

Standard: SGCC, JIS, G3312, GB/T1275, EN

Base Material: Hot dipped galvanized steel coil

Paint Coating: Normal polyester coating, fiuorocarbon coating and silicon modified coating

Thickness: 0.18 to 1.2mm

Size width: Usual: 1,000 to 1,200mm

Zinc Coat: 60g to 100g

Color: All RAL colors to your demands

ID And Weigth: 508 to 610mm, 3 to 12T

Your detailed inquiry will be highly appreciated, we are looking forward to your reply.

Product Description:

Pre-painted galvanized steel coil: paint system consists of a steel substrate to which a super polyester pre-painted finish system is applied.

The system is designed to provide protection against corrosion in areas where severe to very severe environmental conditions are experienced.

Pre-painted steel product is suitable for a wide range of roll-formed roof and wall claddings,rainwater accessories and general buiding products.

Composition:

Following pretreatment, a corrosion inhibitive primer,and top coat is applied to the outer surface and acorrosion inhibitive primer and a backer to the reverse side.

These coatings are oven cured to provide color and corrosion performance.

Anti-rust paper on the surface of the steel sheet coil, then PVC wrapping paper outside the anti-rust paper, then we use the galvanized steel strip to protect the precision cold strip coil.

Application Field:

1. Construction

Roofing, walls, ventilation ducts, rain troughs, sewers, etc.

2. Container Manufacturing

Containers for producing petroleum and barrels for containing different kinds of chemical raw materials,industrial troughs, water tanks, military bullet cases, fermentation vats for beer, barns, distribution cabinets, containers, fertilizer boxes, etc.

3. Household Appliances, Furniture

Backboards shells of washing machine, refrigerator, air conditioning and dust collector, wardrobes, tables, night tables, file cabinets, file boxes, book shelves and other furniture.

4. Vehicle And Vessel Manufacturing

Shells and internal structural parts of cars, trains and other vehicles. Top covers and partitions of vessels.

5. Others

Machinery structural parts, manufacturing shells of motor, different kinds of smoke tubes, pipes, mechanized refrigerated warehouse, etc.
