Inspection standard：1, do not allow obvious stomata, bubbles, pile flow and wrinkling phenomenon.2. No pitting, impurities, scratches, dirt and uneven coating are allowed on the surface.3. Do not allow serious coating leakage, coating peeling, color mixing and adhesion.Do not allow the coating due to excessive baking brittle yellowing, loss of light, etc.4, do not allow the existence of obvious color difference or uneven luster, etc.PPGL sheet coil with the coating 30-275 g/m2
SPECIFICATIONS | |

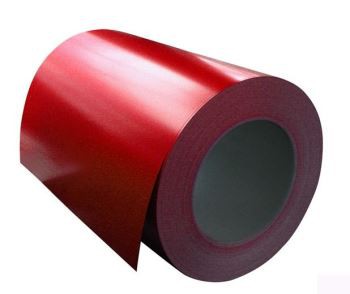

Product | Prepainted Galvalume Steel Coil / Aluzinc Coated Iron Coils / Ppgl With Low Price from Alibaba |
Width | Available from 600MM to 1250MM, customized width: 800 / 914 / 1220 / 1250 / 1219 (regular width: 1,000mm, 1,200mm and 1250mm) |
Thickness | available from 0.12MM to 1.2MM |
Zinc coat | 30g to 275g/m2 |
Color | according to RAL standard (including 210 colors) or Different Patterns (including 3D Wood imitation, Marble, Hairline, Brick, Camouflage series, Cloth, Flowers and Plants, etc). |
Lacquer Coating thickness | Top surface is 15-25 microns and the back is 5-7 microns or according to customer needs |
Paint coating type | Polyester (PE), High-durability Polyester (HDP), Silicon Modified Polyesters (SMP), Polyvinylidene Fluoride (PVDF), Easy-cleaning (EC) |
Standard | JIS G3302, JIS G3313, GB/T2518-88, GB11253-89, ASTM A1008-2000, EN10169 ETC |
Steel grades | GR.A, GR.B, SGCC, CGCC, SPCC, SPHC, DX51D, ECT |
Supply capacity | 20,000 Metric Ton per month |
1. Offer customers 24/7 service, whenever you need us, we are always here for you.
2. Immediate response. Your any inquiry will be replied within 24 hours.
3. Support small order quantity. For the first time cooperation customers, we can send you less quantity for trial order.
4. Support third party inspection company to inspect and check quality and quantity before delivery.PPGL sheet coil with the coating 30-275 g/m2
