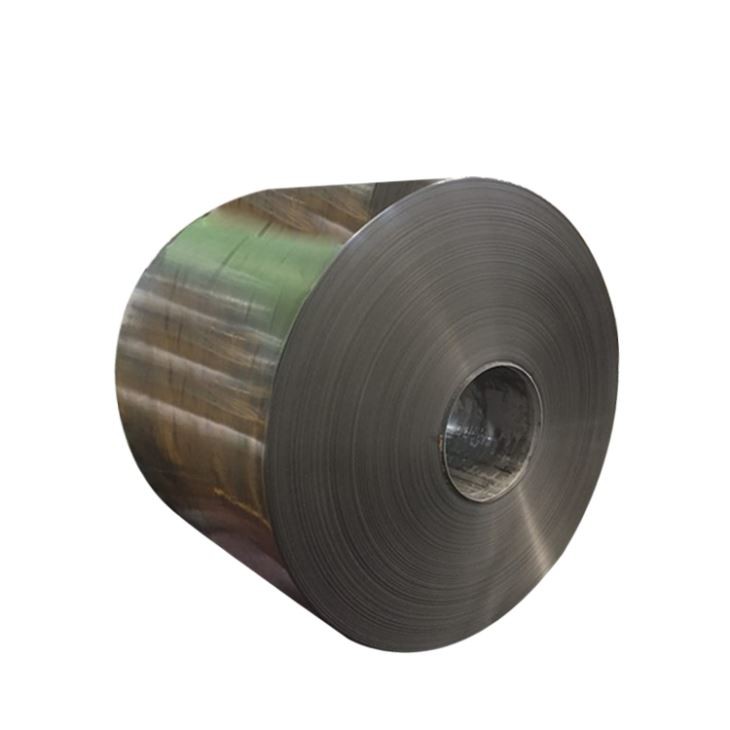

CR Roofing Sheets
Basing on the raw materials of high quality hot-rolled coil which has removed iron oxide after picked, cold-rolled sheet is made through reversing cold rolling deformation imposed on the group, annealing, formation, and exactness processes, including plate and volumes. A steel sheet, which is also known as box board or plate, is for delivery in sheets. A long roll known as the steel delivery is also known as coil.
Production Process
The sheets are not heated duing the process, so there are no pitting and skin defects such as iron oxide, but good-quality and smooth surface. And the accuracy of the cold-rolled products' size is high. The performance and organization of the product can meet some special requirements, such as the electromagnetic properties, deep drawing properties.
Rolling process speed: 1000m/min
Forms of energy: electricity, water, steam
Specification:
Thickness 0.15-1.2mm
Width 700-1250mm
Diameter: 6010mm
Diameter: 2000mm
Coil weight 20T.
Grade: Q195A-Q235A, Q195AF-Q235AF, Q295A(B)-Q345A(B): SPCC, SPCD, SPCE, ST12-15 DCO1-06
Performance: Mainly used in low carbon steel grades, requires a good cold bending and welding performance, and some stamping performance.
Application: cold-rolled products with excellent mechanical and processing properties and thickness of theprecise characteristics are widely used in construction, automotive, transportation and other industries, and as a hot dip for raw materials.
Specification:
Commodity | Cold rolled carbon steel coil |
Steel grade | SPCC, DC01, DC02, DC03, DC04, ST12, Q195 etc. |
Standard | GB, JIS, DIN, AISI, ASTM |
Thickness | 0.1-3mm |
Width | 32-1500mm |
Zin coating(AZcoating) | 0g/m2 |
Length | in roll |
Coil ID | 508/610mm |
Coil Weight | 3-12 tons |
Package | Seaworthy package |
Application | Widely used in chemistry, electricity, house appliance, automobile industry, construction etc. |
Chemical Composition ( Weight % ):
| Grade | C | Si | Mn | P | S | Cr |
430 | 0.12 max | 1.00 max | 1.00 max | 0.040 max | 0.030 max | 16.00- 18.00 |
Mechanical Properities
| Grade | Hardness | Yield Strength (MPa) | Tension Strength (MPa) | Elongation (%) | HV |
430 | ANN | ≥205 | ≥420 | ≥22 | ≤200 |
1/4H | ≥500 | ≥550 | ≥5 | 160- 200 | |
1/2H | ≥600 | ≥650 | ≥3 | 200- 240 | |
3/4H | ≥680 | ≥750 | ≥2 | 240- 280 | |
H | ≥800 | ≥850 | ≥1 | ≥280 |
Packaging And Shipping:
1. Inside: waterproof kraft paper and plastic packaging.
2. Exterior: covered with steel plate, steel plate will be tied to the steel plate.
We can also meet other customer requirements to meet the export shipping standards of packaging.
Our Service:
1. 24 hours on line and prompt reply;
2. Free sample offered;
3. Flexible payment term with L/C at sight,TT ,ect;
4. Big quantity supply and short delivery time;
5. Long period after-sale service.
We Are Professional And International:
We have many experienced employees. Among those, some are professional staffs who have worked in the international steel field for over 20 years. With excellent team-work, we know well about how to handle iron and steel international business with professional service which has brought our continuous business growth and our customer’s satisfaction from the beginning.
