PPGI PPGL Ral Color Number

Overview Quick Details Standard: ASTM, GB, JIS Grade: CGCC/SGCC/DX51D+Z(AZ) Model Number: PPGI Type: Steel Coil Technique: Cold Rolled Surface Treatment: Coated Application: Corrugated roof, Sandwich Panel,Ceiling Special Use: High-strength Steel Plate Width: 600mm~1450mm Length: as per...

Send Inquiry→

Product Details

Overview

Quick Details

Standard: ASTM, GB, JIS Grade: CGCC/SGCC/DX51D+Z(AZ)

Model Number: PPGI Type: Steel Coil

Technique: Cold Rolled Surface Treatment: Coated

Application: Corrugated roof, Sandwich Panel,Ceiling Special Use: High-strength Steel Plate

Width: 600mm~1450mm Length: as per customers

Base Material: Galvanized steel coil( GI), galvalume steel coil(GL) Zinc Layer: Z40~Z275, or AZ40~AZ150(AL55%)

Paint type: Polyester(PE), Silicone Modified Polyester(SMP),HDP,PVDF Coil Weight: 3~10Tons

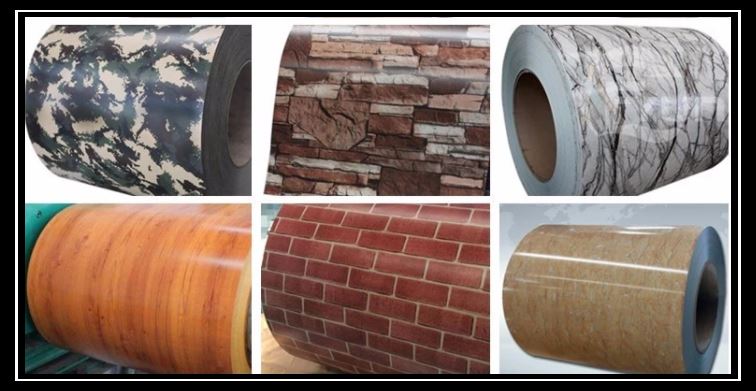

Color: RAL No.color, Wooden color,Military color,or as per customer's request Inner Diameter: 508mm / 610mm

Top side coating: 15~30um Back side coating: 5-10um or 5+10~20um

MOQ: 25 MT (1*GP 20 FCL) Year Capacity: 200,000Tons

Packaging & Delivery

Selling Units: Single item

Single volume: 50 cm 3

Single gross weight: 5000.0 kg

Package Type: Standard for export.Inner Packing: Anti-Rust Paper; Outer Packing: Corner Protected.

ae481d9ec2749f291ccd05af4863abe

Lead Time :

Quantity(Metric Ton)	1 - 500	>500
Est. Time(days)	30	To be negotiated

PPGI PPGL GI Pre painted galvanized steel coil/steel strips/steel sheet

e731bf8edb8e263104facdea1a603cd

Product Description

Product	hot dipped galvanized steel in coil
Standard	JIS3302, EN 10142, ASTM A653, SGCC/SGCH,European Standard, ASTM A792,
Base plate	Cold rolled steel Coil Hot dipped galvanized steel coil(small, regular or zero spangle) Hot dipped galvalume steel coil
Equipment	SPCC GALVANIZED STEEL COIL/SHEET Double coating double baking; three coating three painting
Thickness	0.12mm—0.8mm
Width	914mm—1250mm
Zinc Coating	40g-100g/m2
Paint Thickness	Top:15µm-25µm Back: 5-8µm
Coil Weight	2.5Mt—8Mt
Coil ID	φ508mm—φ610mm
Surface paint	EP, PE, HDP, SMP, PVDF
Color series	RAL color number

85662d6e2f2f6933c1e92a8bd87c2ff

FAQ

Q1: How can I buy products in my country?

A1: Please send us an inquiry or e-mail, we will reply to you and send you a trade assurance order if you need.

Q2: How long does it take to get the product if I place an order

A2: A: For stock products, will make shipments in 5- 7 days after receiving deposit or receiving L/C; for products need new production for common materials, usually make shipments in 15-20 days; for products need new production for special and rare materials, usually need 30-40 days to make shipment.

Q3: How to make payment?

A3: First send us an inquiry, and we will reply with our quotation. If our price suits you, we will prepare proforma invoice with our banking detail.

Q4: Can you do customization & reproduction if I provide a photo?

A4: Yes

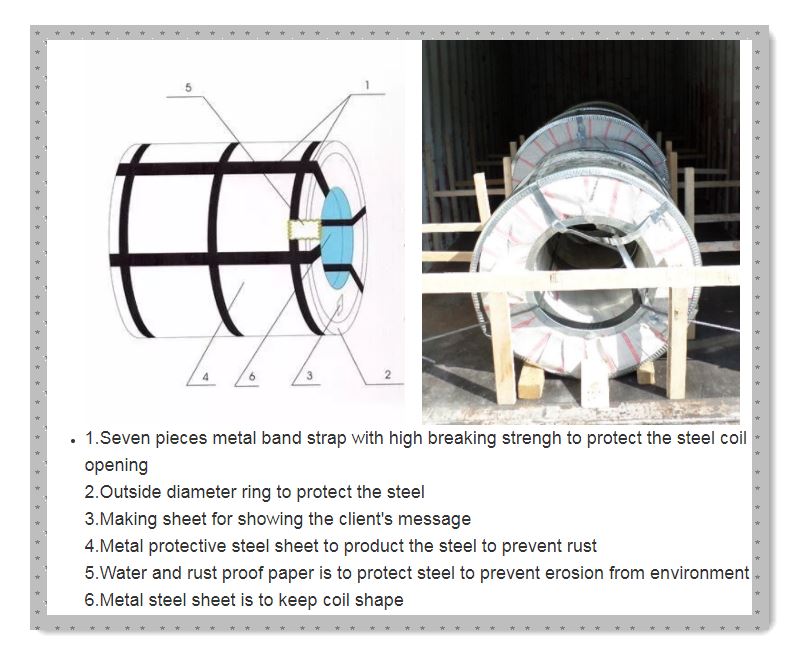

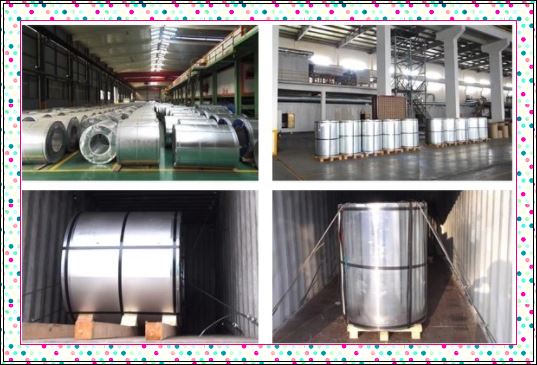

Delivery and Packing in Containers
