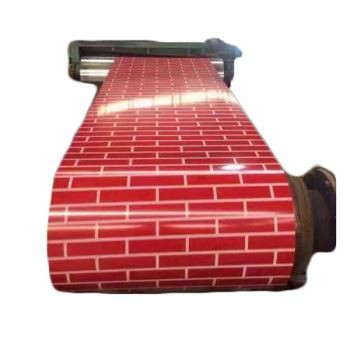

JIS G3312 Pre-painted Galvalume Steel Coil

JIS G3312 Pre-painted Galvalume Steel Coil//Standard:JIS G 3312,GB/T 12754-2006,ASTM A 755,EN10169,AISI,BS,DIN//Technique:Cold rolled—hot dipped galvanizing—color coated

Send Inquiry→

Product Details

Product Parameters

Commodity	JIS G3312 Pre-painted Galvalume Steel Coil
Thickness	0.11-1.2mm
Width	600mm/914mm/1000mm/1200mm/1219mm/1250mm
Alu-Zinc coating	AZ40-AZ180 g/m2
Base material	Hot dipped galvalume steel coil
Weight	3-8 Ton per Coil
Surface finish	Normal coated /Embossed/ Printed with Wood Grain/Marble Grain /Flower Grain/Camouflage
Standard	A792/ GB/T2518, JIS G 3302, DIN EN 10142, ASTM A 653
Package	waterproof paper, galvanized steel covered and steel strip packed
Supply capacity	3000 MT Per Month JIS G3312 Pre-painted Galvalume Steel Coil
Top painting	15~25μm
Back painting	5~7μm
Features	Enhanced viscosity of the coating, to avoid peeling
	Paint sufficient stiffness to reduce scratches
	Upgrading fade stability of the coating can be avoided
MOQ	25 MT for each size
Payment terms	T/T or irrevocable L/C at sight.
Loading Port	Qingdao Port,Tianjin Port

JIS G3312 Pre-painted Galvalume Steel Coil

What We OFFER

JIS G3312 Pre-painted Galvalume Steel Coil

Henan Li Cheung Steel Co., Ltd Provides customers with excellent quality and low cost price products with

advanced domestic equipment and imported raw materials.

We can supply you good quality products with good price, good delivery, good after sales service.

its products are exported to more than 40 countries and areas.

Li Cheung Steel main export product as below image: GI/GL/PPGI/PPGL/PPCR/Color Coated Aluminum

/Cold Rolled Steel Coil/Corrugated Roofing sheet/Strips/Tinplate.

To ensure the quality:Tensile test, Yield Test, Flattening test,Salty spray test,Bending test, chemical

composition and elongation, zinc coating thickness.

JIS G3312 Pre-painted Galvalume Steel Coil

Composition Application

1. The substrates of color steel plates can be divided into cold-rolled substrates, hot-dip galvanized substrates, and galvanized substrates.

2. The coating types of color steel plates can be divided into: polyester, silicon modified polyester, polyvinylidene fluoride, plastisol.

3. The color of the color steel plate can be divided into many types according to user requirements, such as orange, milk yellow, deep sky blue, sea blue, crimson, brick red, ivory, porcelain blue and so on.

4. The surface state of color steel plate can be divided into coated plate, embossed plate and printed plate.

5. The market uses of color-coated steel sheet are mainly divided into three parts: construction, home appliances and transportation. Among them, the construction sector accounts for the largest proportion, the home appliance industry takes the second place, and the transportation industry accounts for only a small part.

Color steel plates for construction generally use hot-dip galvanized steel sheet and hot-dip aluminized zinc steel sheet as substrates, which are mainly processed into corrugated boards or sandwich panels with polyurethane composites, and are used to build steel structure workshops, airports, warehouses, freezers and other industries and businesses Building roof, wall, door.

Color panels for home appliances generally use electrogalvanized and cold plates as substrates for the production of refrigerators and large air-conditioning systems, freezers, bread makers, furniture, etc.

In the transportation industry, electroplated zinc and cold plates are generally used as substrates, which are mainly used for oil pans, automotive interior parts, etc.

Package & Shipping

The JIS G3312 Pre-painted Galvalume Steel Coil is filled with a PVC film and waterproof kraft paper in

the first layer, and the second layer is wrapped in iron sheets and then wrapped on a metal square tube

of a metal tray or a strip.

JIS G3312 Pre-painted Galvalume Steel Coil
