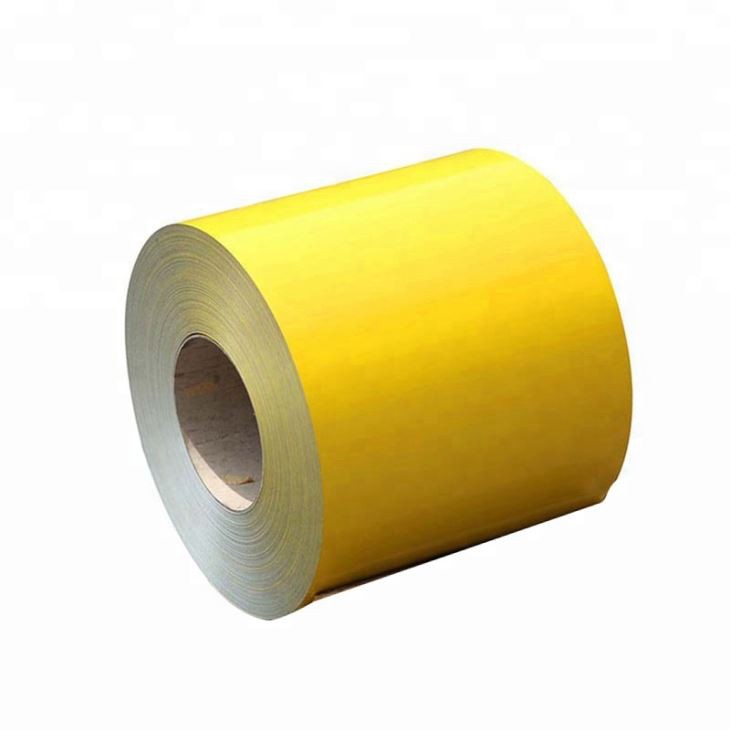

Bright Yellow PPGI PPGL Color Coated

Overview

Quick Details

Standard: AISI, ASTM, BS, DIN, GB, JIS

Grade: Galvanized steel coils

Model Number: Color coated steel

Type: Steel Coil

Technique: Cold Rolled

Surface Treatment: Coated

Application: Structural usage, foofing, commercial usage, household appliance

Special Use: Other

Width: 600-1250MM

Length: Any length

Zinc/AZ Coating: 30-275G/m2

Product Name: Bright Yellow PPGI PPGL Color Coated

ID: 508 OR 610 mm

Weight: 3-5 MT, AS YOUR REQUEST

Color: As Ral colors or as samples

Surface Protection: PE, PVDF, SMP, HDP, etc

Top Coating: 15-25um

Back Coating: 5-10um

Payment term: TT

Supply Ability

Supply Ability:

10000 Ton/Tons per Month

Packaging & Delivery

Packaging Details

Seaworthy packing or as your requested for Bright Yellow PPGI PPGL Color Coated 1.5m galvanized prepainted galvanized steel prepainted steel

Port

TIANJIN/QIANGDAO

Lead Time :

Quantity(Tons)	1 - 50	>50
Est. Time(days)	14	To be negotiated

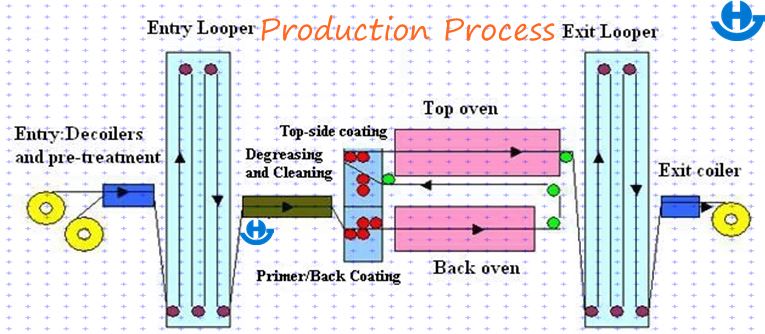

Bright Yellow PPGI PPGL Color Coated is made by the processes of chemical preconditioning, first coating, precision coating and so on through a continuous rapid unit internationally in recent three decades. Its quality is more uniform and stable than the one whose surface of the formed metal is coated single or brushed one.

Name	Bright Yellow PPGI PPGL Color Coated

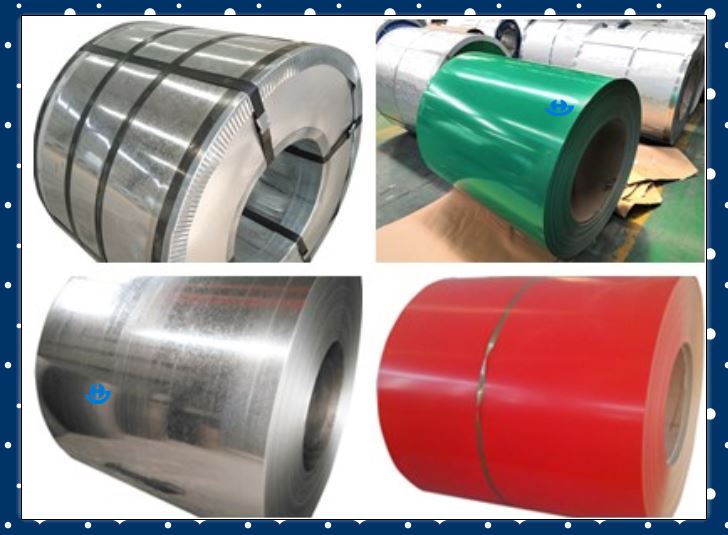

Type of Substrate	Hot Dip Galvanized, Galvalume, Zinc Alloy, Cold Rolled Steel, Aluminium
Thickness	0.13mm-1.2mm
Width	600~1250mm
Coating Types	Top Paint: PVDF, HDP, SMP, PE, PU
	Primer Paint: Polyerethane, Epoxy, PE
	Back Paint: Epoxy, Modified Polyester
Type of coating process	Front: Double Coated & Double Drying
	Back: Double Coated & Double Drying, Single Coated & Double Drying
Coating	Top Paint: 10~25 micron ( normal 10~12micron)
	Back Paint: 5~12micron (normal 5~7micron)
Tolerance	thickness+/-0.01mm
Coil ID	508/610mm
Coil Weight	3~5Tons

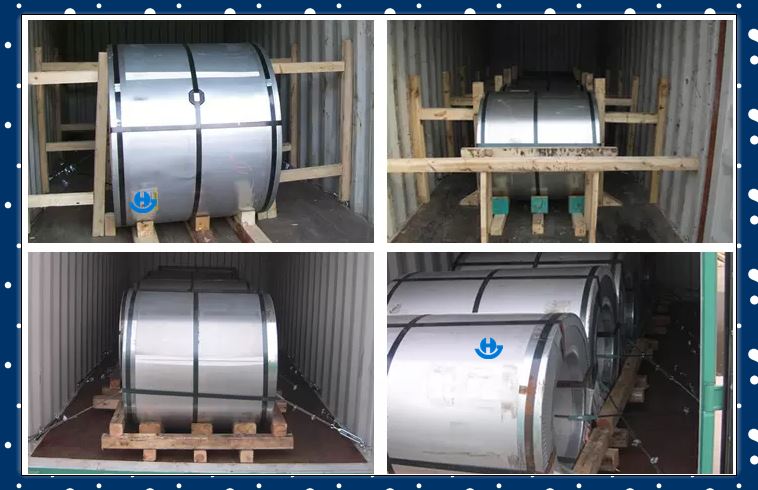

Packing	Standard export package .Plastic film in the first layer,second layer is Kraft paper. Third layer is galvanized sheet
Application	Building industry ,structural use, roofing, commercial use ,household appliance, industry facilities, office buildings
